https://www.aliexpress.us/item/32568058 ... 4itemAdapt

YOUTUBE VIDEO OF RECEIVER
https://www.youtube.com/watch?v=a2QkOP4 ... cA&index=4

Specification:

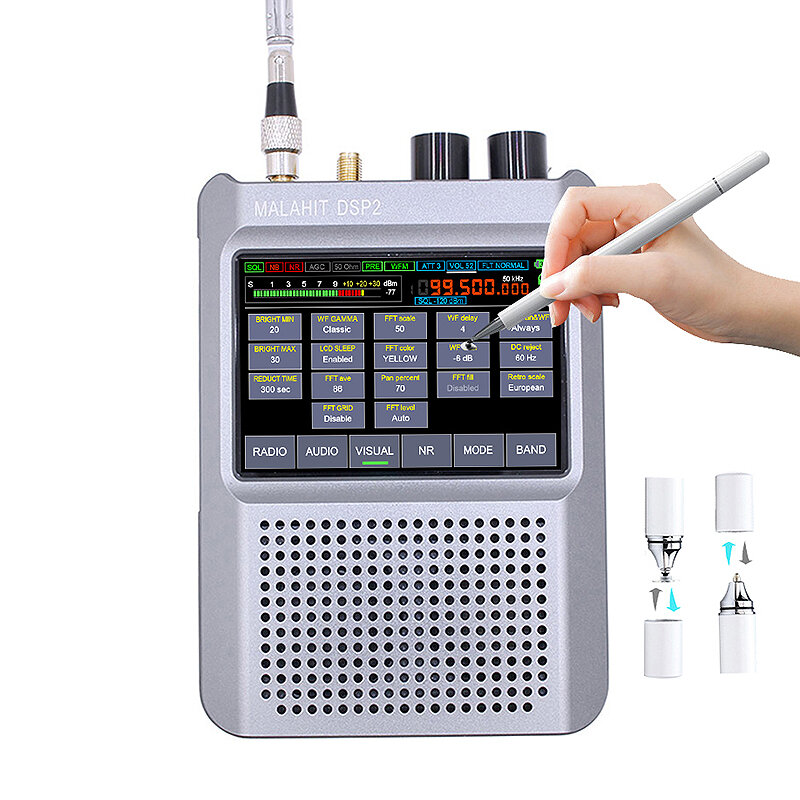

Product Name: 2nd Upgraded Generation Malahit-DSP2 SDR Radio Receiver
Frequency Range: 10kHz - 380MHz, 404MHz - 2GHz
Tunable Bandwidths: 192kHz, 96kHz, 48kHz
Modulation Types: AM, SSB, DSB, CW, NFM, WFM
Sensitivity: 0.3uV up to 1GHz
Dynamic Range: 82dB
Antenna: 50 Ohm threaded SMA connector
High Impedance Mode (optional board for DSP2 or DSP1)
Bias Tee-Enabled Active Antenna (optional board for DSP2 or DSP1)
Built-in Pre-amplifier
Power Source: Built-in 5000mAh Lithium-ion Battery
Software Features: Adjustable Filter Width, Noise Reduction (NR), Threshold Noise Reduction, Noise Blanker (NB), Automatic Gain Control (AGC), Automatic Notch Filter (ANF), Stereo FM with Equalizer, Original Firmware with Official Website Upgradability


Features:

1. High Sensitivity and NR Functionality: The Malahit-DSP2 excels at detecting weak signals and significantly enhances listening clarity through its unique Noise Reduction (NR) feature, delivering a superior listening experience.
2. SDR Technology: Built on Software-Defined Radio (SDR) architecture, this receiver offers robust signal processing and audio capabilities, ensuring an exceptional radio listening experience.
3. Premium Front-Facing Speaker: The Malahit-DSP2 comes equipped with a high-quality front-facing speaker that delivers excellent sound quality, immersing you in an immersive auditory experience.
4. Temperature Compensated Crystal Oscillator (TCXO): The receiver utilizes a TCXO for minimal frequency drift, ensuring stable and accurate reception even over extended periods.
5. Long Battery Life: With a built-in high-capacity 5000mAh battery, the receiver supports prolonged continuous listening, catering to a variety of usage scenarios.



Package Include:

1 x Host 1 x Whip Antenna 1 x 2-in-1 Touch Pen 1 x Stand 1 x No Trace Glue 1 x TYPE-C Data Cable 1 x Eva Storage Bag 1 x Lanyard 1 x English Instruction Manual

_________________
" SILENCE IS CONSENT "

Jim N7UAP - Bellingham, WA / InterceptRadio.com

Yeah but it blocks the fed band which is ridiculous and restrictive. 380-404 should never be filtered out nationally. P25, TETRA, and other various formats, even the FM-modulated Link 11 was seen here at least once before for line of sight ops. Whoever thought the brilliant ill-formed idea of blocking this band didnt actually think about nationwide allocations before releasing it to the field.

Ill wait until they fix it..
