Good morning all!

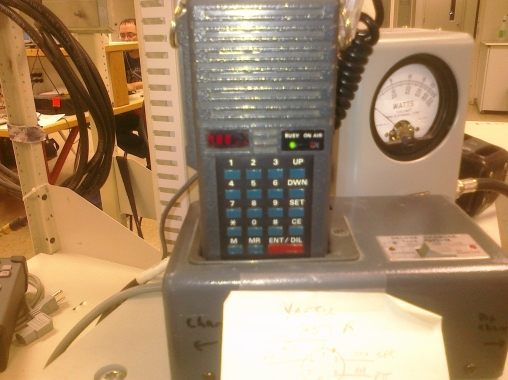

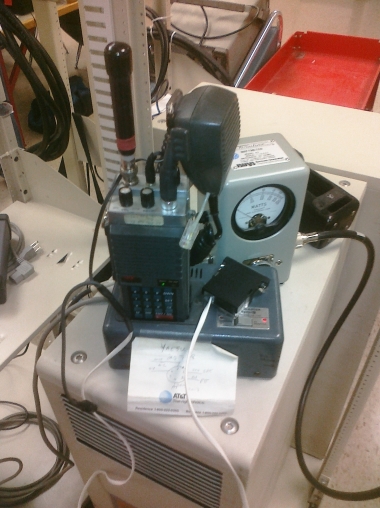

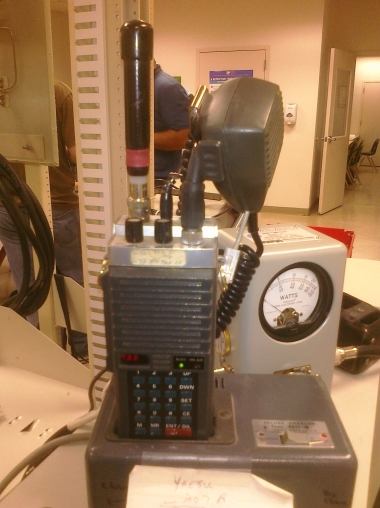

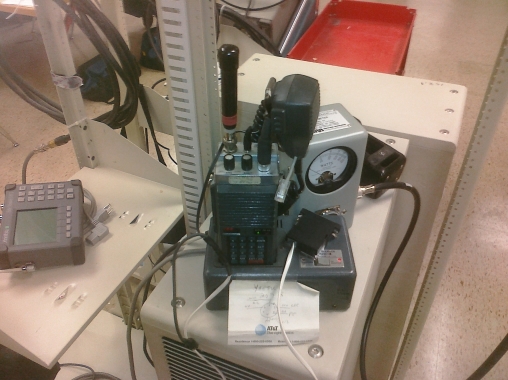

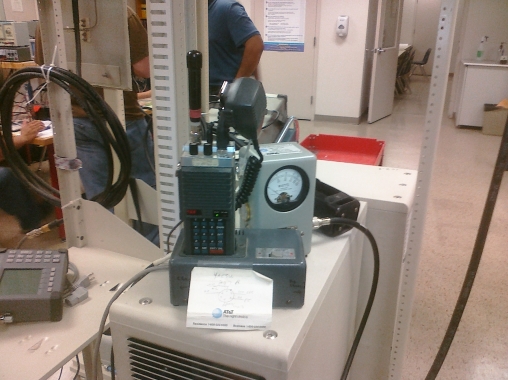

Instructor starts going through a box that a graduate brought in. In the bottom was this radio complete with drop-in charger and REAL leather holster. Has RJ45 pigtail out of shoulder mic, in thinking to utilize the shoulder mic for a mic for mobile. It also has a DB-25 connector eminating from a spliced cable that is plugged into the headphone jack. (Programming?) Appears to be some sort of ham radio. TX on 441-ish. Appears to have knob on the top for the +/- 600 offset. Interesting find. I'm wondering if the AT&T post-it note means anything besides a wiring diagram.

Attachment:
CIMG0323 smaller.jpg
CIMG0323 smaller.jpg [ 179.94 KiB | Viewed 2453 times ]


Attachment:
CIMG0324 smaller.jpg
CIMG0324 smaller.jpg [ 176.65 KiB | Viewed 2450 times ]


Attachment:
CIMG0328 smaller.jpg
CIMG0328 smaller.jpg [ 181.36 KiB | Viewed 2452 times ]

_________________
Interoperability is an attitude, not a technology.


Top
 Profile

PostPosted: Tue Sep 28, 2010 10:26 am
Offline
Bringer of Light
User avatar

Joined: Mon Jun 27, 2005 5:22 pm
Posts: 1573
Location: Depends on the day of the week
Attachment:
CIMG0329 smaller.jpg
CIMG0329 smaller.jpg [ 175.84 KiB | Viewed 2449 times ]


Attachment:
CIMG0330 smaler.jpg
CIMG0330 smaler.jpg [ 181.12 KiB | Viewed 2449 times ]

_________________
Interoperability is an attitude, not a technology.


Top
 Profile

PostPosted: Tue Sep 28, 2010 12:09 pm
Offline
Site Admin
User avatar

Joined: Thu Feb 19, 2004 8:32 pm
Posts: 370
Location: Kenmore, Wa.
Forget about the vintage brick... I've had a bird meter on my X-mas wish list for years. No one has ever come through for me ;)


Top
 Profile

PostPosted: Tue Sep 28, 2010 12:40 pm
Offline
Corporal Cowboy
User avatar

Joined: Thu Feb 19, 2004 4:45 pm
Posts: 3556
Location: Stensgar, SE of
The Vice-Principal wants to see you.

_________________
</>


Top
 Profile

PostPosted: Tue Sep 28, 2010 12:46 pm
Offline
Site Admin
User avatar

Joined: Mon Jan 03, 2000 9:20 am
Posts: 1998
Yaesu FT-207R or FT-407R.


Top
 Profile

PostPosted: Tue Sep 28, 2010 12:56 pm
Offline
Bringer of Light
User avatar

Joined: Mon Jun 27, 2005 5:22 pm
Posts: 1573
Location: Depends on the day of the week
Joey is sitting there playing with the radio and spectrum analyzer, keying it up and watching the analyzer. Instructor comes over and says, "What are you doing?" Joey replies, "Oh, trying to find out what frequency this transmits on." Instructor replies, "Well, you do realize that whatever frequency it is, you don't have a license to transmit on it? You could get in a lot of trouble for that." Joey rolls his eyes.

_________________
Interoperability is an attitude, not a technology.


Top
 Profile

PostPosted: Tue Sep 28, 2010 6:13 pm
Offline
Angus Cheeseburger
User avatar

Joined: Thu Feb 19, 2004 5:09 pm
Posts: 4761
Location: CN88st
So what frequency was it on? :D

_________________
" SILENCE IS CONSENT "

Made to Government Specs:
1) Measured with a micrometer.
2) Marked with a chalk.
3) Cut with an axe.

Jim N7UAP - Bellingham, WA / InterceptRadio.com


Top
 Profile

PostPosted: Tue Sep 28, 2010 6:45 pm
Offline
Site Admin
User avatar

Joined: Mon Jan 03, 2000 9:20 am
Posts: 1998
Here is some further info on the 207R, about halfway down the page:

http://www.foxtango.org/Yaesu-Handhelds/Yaesu-Handheld-Radios.htm


Top
 Profile

PostPosted: Tue Sep 28, 2010 6:49 pm
Offline
Corporal Cowboy
User avatar

Joined: Thu Feb 19, 2004 4:45 pm
Posts: 3556
Location: Stensgar, SE of
jrw14493 wrote:
Joey is sitting there playing with the radio and spectrum analyzer, keying it up and watching the analyzer. Instructor comes over and says, "What are you doing?" Joey replies, "Oh, trying to find out what frequency this transmits on." Instructor replies, "Well, you do realize that whatever frequency it is, you don't have a license to transmit on it? You could get in a lot of trouble for that." Joey rolls his eyes.

If Joey is a licensed ham and said radio is on hamatuer, then Joey gets a star for the day.

_________________
</>


Top
 Profile

PostPosted: Mon Oct 04, 2010 12:02 pm
Offline
User avatar

Joined: Fri Feb 27, 2004 2:22 pm
Posts: 520
Location: Boulder, CO
If you're transmitting into an analyzer terminated with a load then the instructor needs to sick of a 50ohm load in his mouth cause that open port is bleeding noise.

_________________
I taste copper.
Comments, views, opinions - and trails of destruction - are my own.


Top
 Profile

PostPosted: Wed Oct 06, 2010 8:18 am
Offline
User avatar

Joined: Fri Feb 27, 2004 2:22 pm
Posts: 520
Location: Boulder, CO
Vizwar wrote:
If you're transmitting into an analyzer terminated with a load then the instructor needs to sick of a 50ohm load in his mouth cause that open port is bleeding noise.


Well I thought it was funny... :?

_________________
I taste copper.
Comments, views, opinions - and trails of destruction - are my own.


Top
 Profile

PostPosted: Wed Oct 06, 2010 10:23 am
Offline
Bringer of Light
User avatar

Joined: Mon Jun 27, 2005 5:22 pm
Posts: 1573
Location: Depends on the day of the week
I did too. :mrgreen:

It was just sitting there with a cheap antenna hooked up to the spectrum analyzer. Sooooooo...technically it was transmitting -- no dummy load on either one and it wasn't transmitting directly to the analyzer. Soooooooo....technically it was "illegal" but there are enough spurious emissions in this building, let alone this lab area, that it hardly could be received on the outside especially since this building is an impenetrable RF fortress.
